About this guide
Daisy-chaining pedals off one power strip is what causes hum, ground loops and noisy digital pedals – the fix is a dedicated isolated power supply with a separate, filtered output for each pedal. These 9 real supplies range from budget bricks to the higher-current units modern digital multi-effects pedals actually need.
As an Amazon Associate and eBay Partner, toptenpick.com earns from qualifying purchases. Prices and availability are subject to change.
The picks, in detail

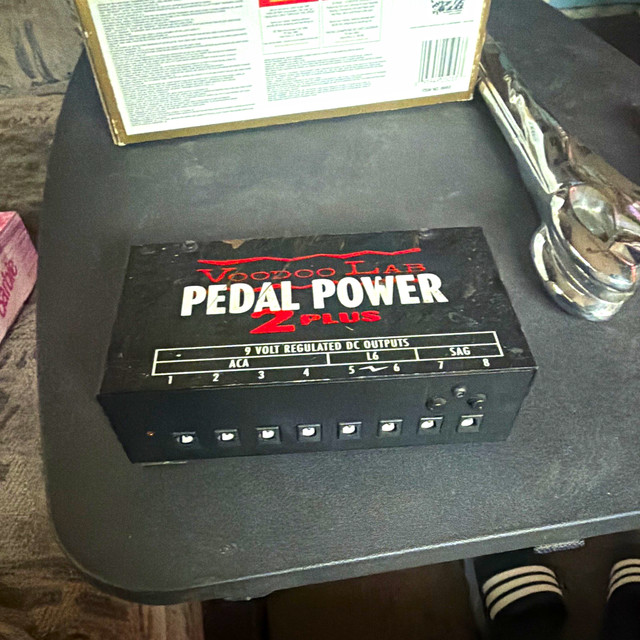

Voodoo Lab Pedal Power 2 Plus
The long-running gold standard isolated power supply, with 8 fully isolated outputs sized for a full-size pedalboard of analog and digital pedals.
- 8 fully isolated outputs
- Multiple voltage taps (9V, 12V, 18V) across outputs
- Extremely low noise floor
- Decades-long reputation as the pedalboard power standard
- Rock-solid, whisper-quiet power that professional boards have relied on for years
- Enough voltage variety to run oddball pedals without extra adapters
- No USB output for wireless units/tuners
- Bulkier than newer compact supplies
Voodoo Lab Pedal Power X8
Voodoo Lab's modern, higher-current supply with 8 isolated outputs delivering up to 500mA each, built for power-hungry digital pedals like multi-effects and reverbs.
- 8 isolated outputs at up to 500mA each
- Digital-pedal-ready current headroom
- Same low-noise isolated-output design as Pedal Power 2 Plus
- Compact enclosure
- Enough current per output for modern digital/multi-effects pedals that overwhelm older supplies
- Same trusted brand reliability
- Premium price versus simpler bricks
- Still no built-in USB output
Truetone 1 SPOT PRO CS7
A widely used mid-price isolated supply with 7 outputs, offering an 18V line for high-current pedals alongside standard 9V/12V taps.
- 7 isolated outputs
- 6 standard 9V outputs (4 switchable to 12V)
- Dedicated 18V high-current output
- Compact, pedalboard-friendly size
- One of the more affordable true isolated supplies from a respected brand
- 18V output covers pedals that need extra headroom
- Fewer total outputs than the 8-10 output boards above
- No USB output
Strymon Zuma
A 9-output, high-current isolated supply built around Strymon's own multistage filtering, designed to cleanly power an entire board of power-hungry digital pedals.
- 9 fully isolated outputs at 500mA each (48W total)
- Optically isolated feedback, multistage filtering
- Expandable via a connected Ojai/Ojai R30
- Strymon’s own dual-stage regulation design
- Very low noise even with several digital pedals drawing current simultaneously
- Expandable if the board grows
- Premium price
- Larger footprint than a compact brick
Strymon Ojai
A smaller, standalone version of Zuma's isolated-output design, sized for compact pedalboards or as an expansion unit for a Zuma.
- 5 isolated outputs at 500mA each
- Same multistage filtering/isolation tech as Zuma
- Compact standalone unit
- Can expand a Zuma via 24V link
- Good fit for smaller boards that don’t need Zuma’s full 9 outputs
- Same clean, low-noise Strymon design
- Fewer outputs limits it on larger boards
- Costs more per output than budget bricks
MXR M238 Iso-Brick
A 10-output isolated brick with a wide mix of voltages and current ratings, a popular do-it-all option for mixed analog/digital boards.
- 10 isolated outputs across multiple voltage/current combinations
- Two variable 6-15V outputs for oddball pedals
- Compact metal brick enclosure
- Well-regarded value pick
- Voltage variety covers almost any pedal without extra adapters
- Strong reputation as a safer upgrade from daisy-chaining
- Doesn’t carry the same prestige as Voodoo Lab/Strymon among pros
- No expansion capability

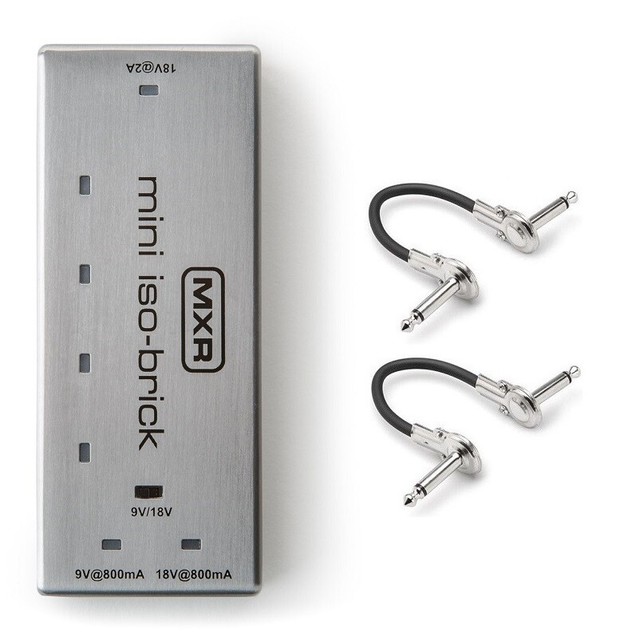

MXR M239 Mini Iso-Brick
A smaller-footprint version of the Iso-Brick for boards where space under the pedals is tight.
- Multiple isolated outputs at up to 300mA
- Compact mini enclosure sized for small-to-medium boards
- Same MXR isolated-output design family as the M238
- Multiple voltage taps
- Frees up board space versus the full-size Iso-Brick
- Still fully isolated, not a daisy chain
- Fewer/lower-current outputs than the full M238
- Less headroom for hungry digital pedals
Cioks DC7
A slim, 1-inch-profile European-made supply with 7 isolated outlets plus USB and 24V auxiliary outputs, built to expand as a board grows.
- 7 isolated DC outlets, 4 selectable voltages each
- Slim 1-inch profile
- Built-in 5V USB output and 24V auxiliary out
- Expandable with Cioks 4/Cioks 8 add-on units
- USB output covers wireless units and tuners without a separate adapter
- Expansion system scales with the board over time
- Premium European pricing
- Requires the separate expander units to grow past 7 outlets
T-Rex Fuel Tank Chameleon
A compact 6-output supply with switchable voltages per output, from Danish pedal maker T-Rex, aimed at boards mixing 9V, 12V and 18V pedals.
- 6 isolated outputs
- Per-output voltage selection: 9V, 12V, 18V DC, or 12V AC
- Compact footprint
- Reputable boutique pedal-gear brand
- Per-output AC/DC and voltage selection covers unusual vintage-style pedals
- Compact size fits smaller boards
- Fewer total outputs than the Voodoo Lab/MXR bricks
- Mid-tier current handling versus the highest-output options
What each one costs
Typical price, cheapest first. Tap a name to jump to that pick and its buy link.
Compare any three
| Voodoo Lab Pedal Power 2 Plus | Voodoo Lab Pedal Power X8 | Truetone 1 SPOT PRO CS7 | |
|---|---|---|---|
| Price | $170-$200 | $200-$230 | $90-$110 |
| Key features |
|
|
|
| Pros |
|
|
|
| Cons |
|
|
|
Buying tips
- Never daisy-chain more than 2-3 low-current analog pedals off one output; digital pedals (delay, reverb, multi-effects) need their own isolated output or they’ll introduce hum and ground loop noise into the whole chain.
- Check each pedal’s actual current draw (mA) before buying – a supply with plenty of outputs can still fall short if several of your pedals are high-draw digital units sharing outputs rated for pedal-level current.
- If any pedal needs 12V or 18V (many overdrives and some modulation pedals do), confirm the supply has a matching voltage tap rather than relying on a step-up adapter, which adds noise.
