A .45 ACP reloading die set is a precision bench tool for resizing and reloading brass cartridge cases, not a firearm or firearm accessory itself — but it sits close enough to ammunition production that this guide covers what the dies actually do and how to evaluate one, without pointing you toward a specific purchase or retailer.

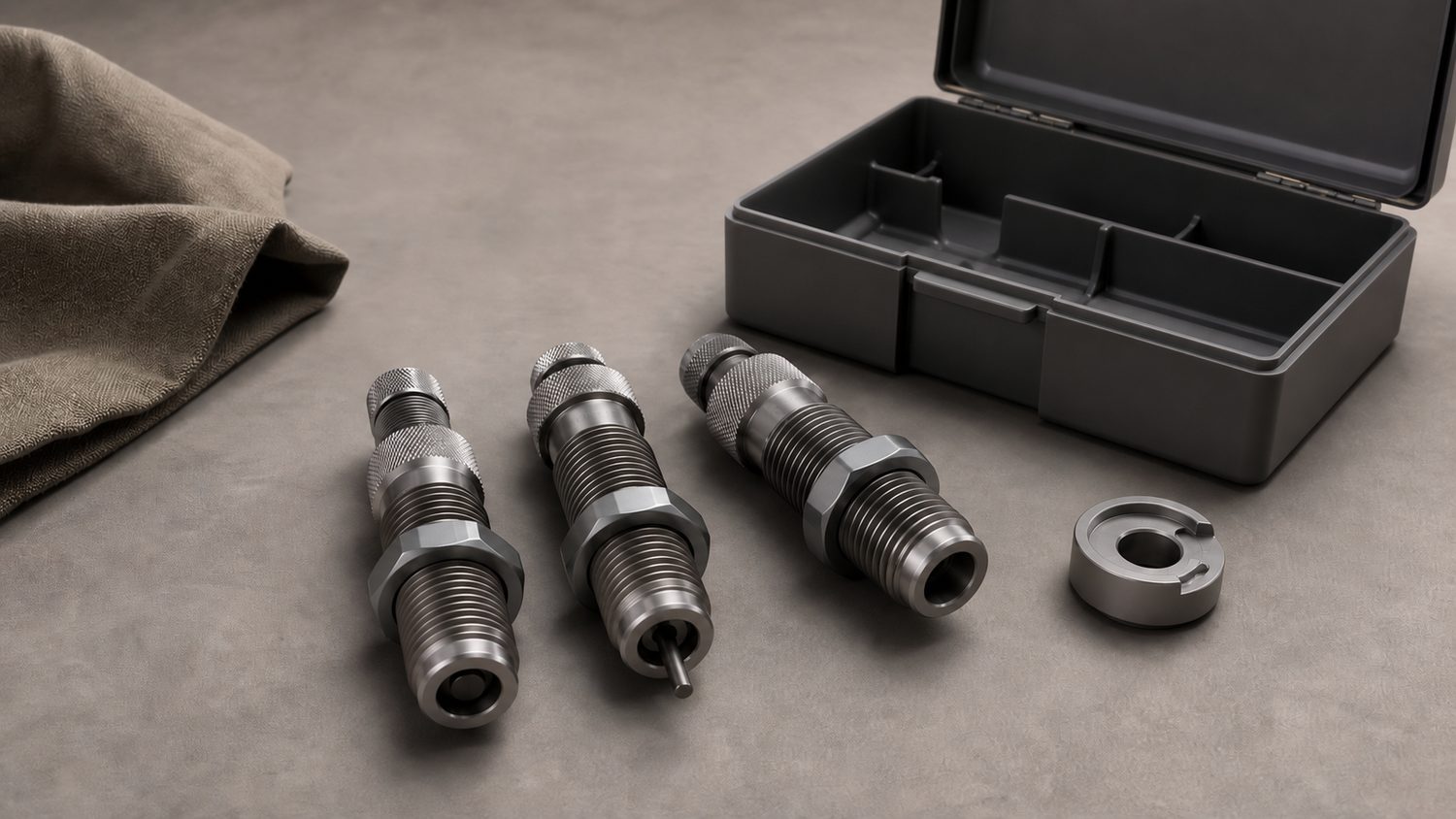

What’s in a typical set
A standard .45 ACP die set has three dies, sometimes sold as a fourth optional add-on: a sizing die, an expanding (belling) die, and a seating die that usually combines seating and crimping in one step. Some sets separate the crimp into its own fourth die for finer control. Each die threads into a reloading press turret or single-stage press in sequence, and a case passes through all of them as part of a full reloading cycle.
The sizing die
The sizing die resizes a fired case back down to correct dimensions and, on most dies, simultaneously deprimes the case (knocks out the spent primer) via a decapping rod running through the die’s center. For pistol calibers like .45 ACP, sizing dies are almost always carbide — a carbide ring inside the die means the case doesn’t need to be lubricated before sizing, which simplifies the process considerably compared to the case lubrication required for rifle-caliber steel dies.
The expander (belling) die
After sizing, the case mouth is slightly too narrow to accept a new bullet without shaving lead or copper off the bullet’s base as it’s seated. The expander die flares (“bells”) the case mouth outward just enough to let a bullet start straight without damage. Too much flare wastes brass life through repeated stretching; too little risks damaging bullets during seating.
The seating die and taper crimp
The seating die pushes the bullet down to the correct overall cartridge length, and on most .45 ACP dies, applies a taper crimp in the same step. This is where .45 ACP’s design specifically matters: it’s a rimless, semi-automatic pistol cartridge that headspaces on the case mouth, meaning the gun’s chamber uses the case mouth itself — not a rim, like a revolver round — to control how far the cartridge sits in the chamber. A taper crimp gently straightens out the case mouth flare from the expander step without rolling it inward, preserving that headspacing surface. A roll crimp, used on revolver cartridges that headspace on a case rim instead, would be the wrong choice here and can cause feeding or chambering problems in a semi-auto pistol.
Carbide vs. steel construction
Nearly all modern .45 ACP die sets use carbide sizing dies specifically because carbide eliminates the need for case lubrication — a real time-saver on a pistol caliber where reloaders often process cases in higher volume than typical rifle reloading. Steel dies exist and cost less, but require lubricating every case before sizing and removing that lubricant afterward, adding a meaningful extra step to every batch.
What to check before buying any set
Confirm the set is specifically listed for .45 ACP (some manufacturers sell combined .45 ACP/.45 GAP or .45 ACP/.45 Auto Rim sets that use shared dies with caveats). Confirm whether the seating/crimping function is combined into one die or split into a separate crimp die — both approaches work, but they change how you set up the press. And confirm the set includes (or you separately own) the correct shell holder for your press, since shell holders are usually sold separately from the die set itself.
Bottom line
A .45 ACP die set is a precision bench tool built around three core functions — resize/deprime, expand/bell, seat/crimp — with the taper crimp step specifically matched to .45 ACP’s rimless, case-mouth-headspacing design. Carbide construction is the practical standard for this caliber because it skips case lubrication entirely, and the main decisions when evaluating any set are whether crimping is combined or separate, and whether it’s genuinely listed for .45 ACP rather than a shared multi-caliber part.
