V-nose enclosed trailers are notorious for defeating standard weight-distribution hitches, since the spring-bar brackets typically need 25-30 inches of straight frame behind the ball that the tapered nose simply doesn’t leave. These are real systems – some using bolt-on or clamp-style brackets designed around that exact limitation – verified as usable with V-nose trailers.
| # | Product | Price | Where to buy |
|---|---|---|---|
| 1 | Reese Straight-Line Weight Distribution with Sway Control (RP66130) | $500-$650 | Amazon |
| 2 | Reese Steadi-Flex Trunnion Weight-Distributing Hitch Kit (66559) | $350-$450 | Amazon · eBay |
| 3 | Reese Round Bar Weight Distribution Hitch (61009) | $250-$350 | Amazon |
| 4 | Reese Bolt-On Lift Bracket Kit (RP58305) | $80-$120 | Amazon |
| 5 | Andersen No-Sway Weight Distribution Hitch | $450-$600 | Amazon · eBay |
| 6 | Equal-i-zer 4-Point Sway Control Hitch | $500-$650 | Amazon · eBay |
| 7 | Blue Ox SwayPro Weight Distribution Hitch (BXW1500) | $500-$650 | Amazon · eBay |
The picks, in detail
Reese Straight-Line Weight Distribution with Sway Control (RP66130)
A commonly recommended system for V-nose trailers, rated for a wide tongue-weight range.
- 800-1,500 lb tongue weight capacity
- Integrated sway control
- Even weight distribution across trailer and tow vehicle axles
- Handles the tongue-weight range typical of mid-size enclosed trailers
- Sway control built in, no separate add-on needed
- Still needs adequate frame access for the spring-bar brackets
Reese Steadi-Flex Trunnion Weight-Distributing Hitch Kit (66559)
A trunnion-bar kit for lighter-duty V-nose trailers where you don’t need the full 12,000 lb capacity.
- 10,000 lb GTW / 1,000 lb tongue weight capacity
- Trunnion-style spring bars
- Complete kit with shank
- Lower cost than the higher-capacity systems
- Simple trunnion-bar design
- Lower capacity ceiling than the 12,000 lb Reese Round Bar kit
Reese Round Bar Weight Distribution Hitch (61009)
A heavier-duty round-bar system for larger, more heavily loaded V-nose trailers.
- 12,000 lb GTW / 1,200 lb tongue weight capacity
- Round spring bars
- Complete hitch head and shank kit
- Highest capacity of the standard Reese kits here
- Well-proven round-bar design
- Heaviest and bulkiest of the Reese options to set up
Reese Bolt-On Lift Bracket Kit (RP58305)
The accessory that actually solves the V-nose clearance problem: brackets that bolt to the side of the frame rails instead of underneath.
- Bolts to the side of the trailer’s frame members
- Clears V-nose construction entirely
- Compatible with standard Reese spring-bar systems
- Directly addresses the V-nose frame-access problem
- No welding required
- An add-on bracket, not a complete WD hitch by itself

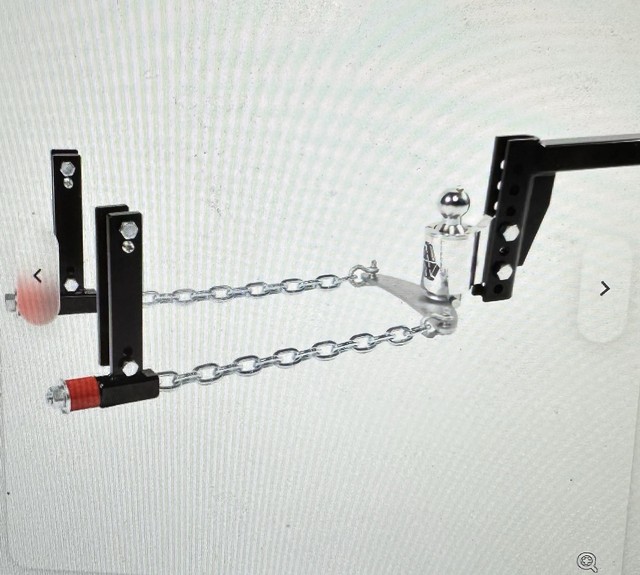

Andersen No-Sway Weight Distribution Hitch
A clamp-on system that many V-nose trailer owners report success with when frame access is especially limited.
- Clamp-mounted, no drilling into the frame
- Integrated anti-sway design
- Lighter overall system weight than round-bar hitches
- No-drill install works around tight V-nose frames
- Lighter and easier to handle than steel spring-bar systems
- Different setup process than a traditional spring-bar hitch takes some learning

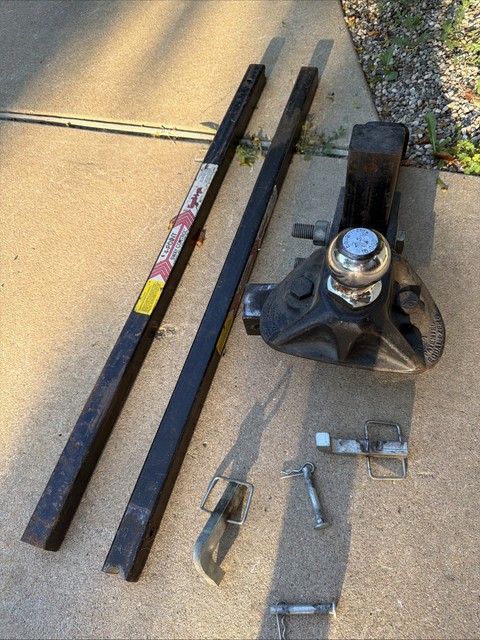

Equal-i-zer 4-Point Sway Control Hitch
A 4-point sway system some V-nose owners run with clamp-on brackets that avoid drilling into the frame.
- 4-point sway control
- Clamp-style bracket mounting available
- Even weight distribution across both axles
- Strong sway control reputation
- Clamp mounting avoids frame drilling
- Setup still needs enough clear frame length for the brackets
Blue Ox SwayPro Weight Distribution Hitch (BXW1500)
A high-capacity SwayPro system for larger V-nose trailers needing up to 15,000 lb towing capacity.
- 15,000 lb maximum towing capacity
- 7-hole shank for adjustable height
- Noise-free sway prevention design
- Highest towing capacity in this roundup
- Quieter operation than chain-and-bracket systems
- Overkill capacity (and cost) for smaller trailers
Buying tips
- Weigh your fully loaded trailer’s actual tongue weight before choosing a system – it’s the single most important number for matching capacity, and guessing leads to an over- or under-rated hitch.
- If your V-nose trailer’s frame simply doesn’t leave room for standard spring-bar brackets, a bolt-on lift bracket kit or a clamp-style system (Andersen, Equal-i-zer) solves the clearance problem without cutting or welding.
- Sway control isn’t optional for a boxy enclosed trailer – the flat sides catch crosswinds and semi-truck wake far more than an open utility trailer does.
