Before buying a drive, know this: TiVo pulled firmware support for external storage on the Roamio years ago, so the eSATA port on the back won’t accept a plug-and-play external drive — even though it’s still physically there. The only real way to expand a Roamio’s recording capacity is to open the unit and swap the internal drive for a larger one. That’s a well-worn upgrade path with a specific set of drives the TiVo community trusts, all listed below.
| # | Product | Price | Where to buy |
|---|---|---|---|
| 1 | Western Digital Red Plus 3TB (WD30EFPX) | $70-$85 | Amazon · eBay |
| 2 | Western Digital Red Plus 4TB | $90-$110 | Amazon · eBay |
| 3 | Western Digital Red Plus 6TB | $130-$150 | Amazon · eBay |
| 4 | WD Purple 4TB | $90-$110 | Amazon · eBay |
| 5 | WD Purple 6TB | $140-$160 | Amazon · eBay |
| 6 | Seagate SkyHawk 4TB | $85-$100 | Amazon · eBay |
| 7 | Seagate SkyHawk 6TB | $130-$150 | Amazon · eBay |
| 8 | Toshiba N300 4TB | $85-$100 | Amazon · eBay |
| 9 | Seagate IronWolf 4TB | $95-$115 | Amazon · eBay |
The picks, in detail
Western Digital Red Plus 3TB (WD30EFPX)
The most commonly recommended internal swap for a Roamio — a CMR, NAS-rated drive built for 24/7 operation, and the size the Roamio’s firmware will auto-recognize without extra steps.
- 3TB capacity, CMR (not SMR)
- Designed for 24/7 NAS/DVR-style operation
- 5,400 RPM class for lower heat and noise
- 3.5-inch SATA
- Auto-configures on Roamio without needing the MFSR expansion tool
- Widely confirmed working by the TiVo community specifically
- 3TB is a meaningful but not huge capacity jump over stock
Western Digital Red Plus 4TB
The next capacity step up in the same CMR, DVR-friendly Red Plus line, for owners who want more headroom than the 3TB auto-config size.
- 4TB capacity, CMR
- 24/7-rated NAS/DVR drive
- 3-year limited warranty
- 3.5-inch SATA
- Meaningfully more recording headroom than 3TB
- Same trusted, community-verified drive family
- Requires the Roamio’s MFSR-based expansion process rather than auto-detecting
Western Digital Red Plus 6TB
A larger-capacity option in the same drive family for owners who want to maximize storage in a single internal swap.
- 6TB capacity, CMR
- 24/7-rated NAS/DVR drive
- 3.5-inch SATA
- Higher areal density than the 3TB/4TB models
- Largest practical capacity in a drive family the TiVo community already trusts
- Same reliability tier as the smaller Red Plus drives
- Needs the PC-based expansion tool to actually use the full capacity on Roamio

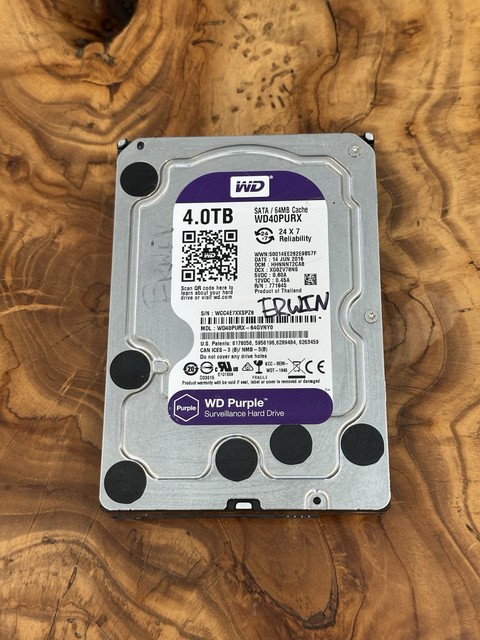

WD Purple 4TB
WD’s surveillance-DVR line, engineered specifically for constant write-heavy video recording — a natural fit for a device that’s always recording something.
- 4TB capacity, CMR
- Built for surveillance DVR/NVR write workloads
- AllFrame technology reduces frame loss under load
- 3.5-inch SATA
- Purpose-built for exactly the always-recording use case a DVR represents
- Reported working well in Roamio community upgrade threads
- Slightly less widely documented specifically for TiVo than the WD Red line
WD Purple 6TB
The larger-capacity Purple option for owners who want maximum recording headroom from a drive designed around constant video writes.
- 6TB capacity, CMR
- Surveillance-optimized firmware
- 3.5-inch SATA
- 3-year limited warranty
- High capacity from a write-endurance-focused drive family
- Good fit for households recording many channels/tuners at once
- Higher price than the equivalent WD Red Plus capacity
Seagate SkyHawk 4TB
Seagate’s answer to WD Purple — a surveillance/DVR-class CMR drive built for continuous write cycles, and a common alternative brand pick for Roamio upgrades.
- 4TB capacity, CMR
- Built for DVR/surveillance write workloads
- ImagePerfect firmware tuned for video streams
- 3.5-inch SATA
- Good alternative if you prefer Seagate over Western Digital
- Rated specifically for the always-on recording pattern a TiVo represents
- Slightly less TiVo-specific community track record than WD Red
Seagate SkyHawk 6TB
The higher-capacity SkyHawk option for owners maximizing storage with a Seagate drive family instead of WD.
- 6TB capacity, CMR
- DVR/surveillance-rated firmware
- 3.5-inch SATA
- Rescue data recovery service option
- Large capacity from a write-endurance-focused drive
- Good option if standardizing on Seagate hardware
- Requires the PC-based expansion tool like other 4TB+ options
Toshiba N300 4TB
A CMR NAS-class drive from a third major brand, for buyers comparing beyond just WD and Seagate for this upgrade.
- 4TB capacity, CMR
- Built for 24/7 NAS-style operation
- 3.5-inch SATA
- 3-year limited warranty
- Reliable CMR alternative brand at a competitive price
- Rated for continuous operation like the WD/Seagate options
- Less TiVo-specific community documentation than WD Red
Seagate IronWolf 4TB
Seagate’s NAS-focused (rather than pure-surveillance) drive family — another CMR option that fits the Roamio’s continuous-operation needs.
- 4TB capacity, CMR
- NAS-optimized, rated for 24/7 operation
- 3.5-inch SATA
- AgileArray firmware
- Solid all-around reliability for continuous-duty use
- Widely available and competitively priced
- Marketed for NAS rather than DVR specifically, though the CMR/24/7 rating applies equally well
Buying tips
- Do not buy a consumer desktop drive (WD Blue, WD Black, Seagate Barracuda) for this — many use SMR (shingled) recording, which causes stutter and dropped recordings under a DVR’s constant write pattern. Stick to CMR, NAS- or surveillance-rated drives like the ones above.
- The Roamio’s eSATA port will not accept an external drive on current firmware — the only supported expansion path is opening the unit and replacing the internal drive.
- 3TB drives are generally auto-recognized by the Roamio’s software; drives above 3TB typically need TiVo’s MFSTools/MFSR-based expansion process run from a PC first.
- Power draw and heat matter in the Roamio’s small enclosure — the drives above are all specifically rated for continuous 24/7 operation, unlike standard desktop drives.
