Worth clearing up first, because it changes what you should buy: Intel never made an i7-7600K.
The 7th-generation Kaby Lake desktop line had an i5-7600K — four cores, four threads, unlocked — and an i7-7700K, four cores with hyperthreading. The i7-7600K is a merge of the two that circulates widely in searches and listings. If you are buying a chip, work out which of the two you actually want. If you already own one, check the model number printed on the chip or reported by your system, because it matters for what you should expect from it.
The good news is that the motherboard answer is the same either way. Both are LGA 1151 and both run on Intel’s 100- and 200-series chipsets — Z170, Z270, B250, H270 and so on.
And here is the trap that costs people money, and the most useful thing in this article. Intel’s 8th and 9th generation processors use a socket also called LGA 1151, and they are not compatible with these boards. The socket is mechanically identical — the chip physically drops in — and the pin assignments and power delivery changed, so a Kaby Lake chip will not work in a 300-series board and a Coffee Lake chip will not work in a 200-series one. Nothing about the packaging or the socket name warns you. People buy a current-looking LGA 1151 board for a 7th-gen chip and discover the incompatibility after assembly.
So: for a 7600K or a 7700K, you want a 100-series or 200-series board, and the Z270 is the one to look for if the chip is a K model — only the Z chipsets allow overclocking, which is the entire reason to own a K.
One practical note: these are now used parts. Ten picks below, including what to check when buying second-hand.
| # | Product | Price | Where to buy |
|---|---|---|---|
| 1 | Z270 Chipset ATX Motherboard | $70-$180 used | Amazon · eBay |
| 2 | Z170 Chipset Motherboard | $50-$140 used | Amazon |
| 3 | B250 or H270 Chipset Motherboard | $40-$100 used | Amazon |
| 4 | Micro-ATX or Mini-ITX 200-Series Board | $50-$160 used | Amazon |
| 5 | DDR4 Memory Kit (16 GB, 2×8 GB) | $35-$80 | Amazon · eBay |
| 6 | NVMe M.2 SSD | $40-$120 | Amazon · eBay |
| 7 | LGA 1151 CPU Cooler | $25-$90 | Amazon |
| 8 | Modern Power Supply (80 Plus Rated) | $50-$130 | Amazon · eBay |
| 9 | Thermal Paste | $8-$20 | Amazon · eBay |
| 10 | Anti-Static Strap and Build Tool Kit | $15-$40 | Amazon · eBay |
The picks, in detail

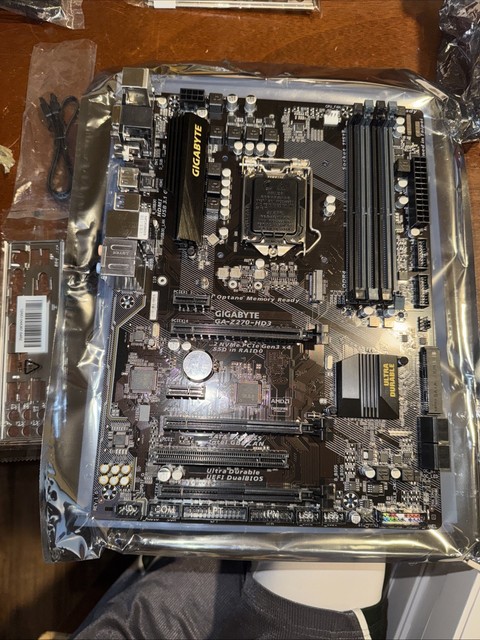

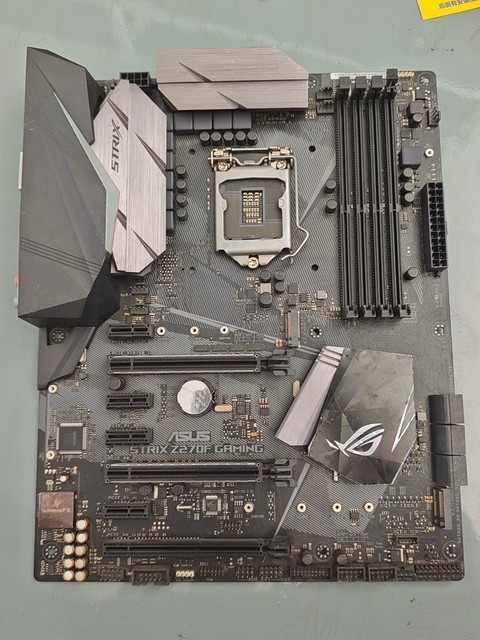

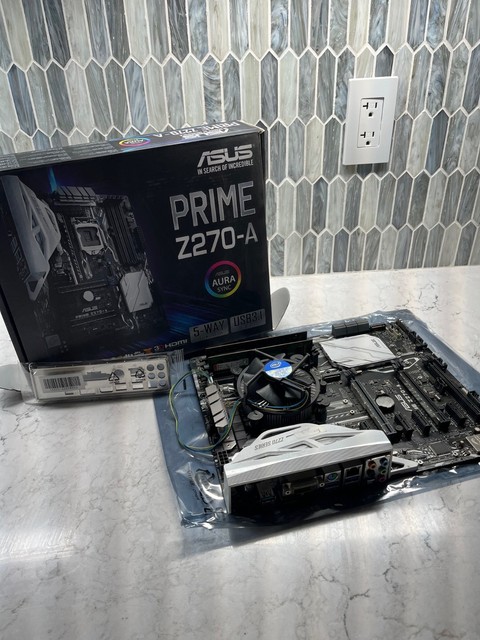

Z270 Chipset ATX Motherboard
The right board for an unlocked Kaby Lake chip. Z270 is the enthusiast chipset of the generation, and it is the only tier that allows CPU overclocking — which is the whole point of paying for a K-suffix processor. Full ATX gives you the expansion slots, the better power delivery and the more substantial VRM cooling that overclocking actually needs. On the used market these are plentiful and cheap. Check the board supports your specific chip with its shipped BIOS or that you can update it.
- Intel Z270 chipset, LGA 1151
- CPU overclocking support
- Multiple PCIe and M.2 slots
- Substantial VRM cooling on better boards
- The only chipset tier that unlocks a K processor
- Full expansion and better power delivery
- Plentiful and cheap used
- Used only — no longer made
- BIOS version matters for Kaby Lake support on Z170
Z170 Chipset Motherboard
The previous chipset in the same socket, and it runs Kaby Lake chips perfectly well — with one condition. A Z170 board needs a BIOS version that includes Kaby Lake support, and a board sitting on its original shipped BIOS may not boot a 7th-gen chip at all. That is a chicken-and-egg problem unless the seller has already updated it or you have a compatible 6th-gen chip to update with. Ask the seller specifically. If the BIOS is current, Z170 is usually cheaper than Z270 for the same capability.
- Intel Z170 chipset, LGA 1151
- Overclocking support
- Requires a Kaby Lake-capable BIOS
- Usually cheaper than Z270
- Cheaper than Z270 for comparable features
- Runs Kaby Lake fine with a current BIOS
- Widely available used
- An un-updated board may not boot a 7th-gen chip at all
- Updating needs a compatible older chip or a BIOS flashback feature
B250 or H270 Chipset Motherboard
The budget tier, and the right choice if the chip is not a K model or if you have no intention of overclocking. B250 and H270 boards run a 7600K or 7700K perfectly, at stock speeds — you simply cannot raise the multiplier. They are cheaper, usually smaller, and have fewer slots and lighter power delivery, none of which matters at stock. If you own a K chip and never plan to overclock it, be honest about that and save the money.
- Intel B250 or H270 chipset, LGA 1151
- No CPU overclocking
- Fewer expansion slots
- Lower cost
- Cheaper than a Z-series board
- Runs a K chip at stock speeds with no issues
- Often available in compact form factors
- No overclocking at all
- Lighter VRM and fewer slots
Micro-ATX or Mini-ITX 200-Series Board
For a compact build, and the trade-offs are worth knowing rather than discovering. A smaller board means fewer PCIe slots, fewer RAM slots — mini-ITX has two rather than four — and in a small case, considerably more thermal pressure on the VRM. For a stock-speed build with one graphics card that is fine. For an overclocked K chip in a small case it is asking a lot of the power delivery, and the boards that do it well were expensive when new and are not cheap used.
- Micro-ATX or mini-ITX form factor
- Two RAM slots on mini-ITX
- Single graphics card
- Z, B or H chipsets available
- Fits genuinely small cases
- Everything needed for a single-GPU build
- Micro-ATX is often cheaper than ATX
- Mini-ITX has two RAM slots, capping capacity
- Small cases put real thermal pressure on the VRM
DDR4 Memory Kit (16 GB, 2×8 GB)
The upgrade that most improves a machine of this age. These boards take DDR4, and sixteen gigabytes in two matched sticks is the sensible target — dual channel, which needs a matched pair rather than one large stick, and enough capacity that the system stops swapping under normal multitasking. Kaby Lake officially supports DDR4-2400; faster kits will usually run at their rated speed on a Z-series board via XMP, and will drop to 2400 on a B or H board.
- DDR4 in matched pairs for dual channel
- 16 GB as 2×8 GB
- XMP profiles for rated speed
- 2400 MHz official support on this platform
- The largest practical improvement on a machine this age
- Dual channel needs a matched pair, which a kit guarantees
- DDR4 is cheap now
- Speeds above 2400 only run at rate on Z-series boards
- Mixing old and new sticks often causes instability
NVMe M.2 SSD
The other upgrade that transforms a machine of this generation, and 200-series boards support NVMe over M.2 properly. Moving from a SATA drive — never mind a mechanical disk — to NVMe changes boot times and application launches by a large multiple. Check your specific board’s manual for two things: which M.2 slot is wired for NVMe rather than SATA-only, and whether populating it disables certain SATA ports, which is common on this generation and catches people out.
- M.2 NVMe interface
- 500 GB to 2 TB capacities
- Several times SATA speed
- Fits directly on the board
- The biggest responsiveness improvement available
- No cables at all
- Cheap at current prices
- Some M.2 slots are SATA-only — check the manual
- Populating M.2 disables SATA ports on many boards
LGA 1151 CPU Cooler
Both the 7600K and the 7700K ship without a cooler, and the 7700K in particular runs hot — these chips use thermal paste rather than solder under the heat spreader, which is a well-known limitation of the generation and the reason temperatures are higher than the power figures suggest. A decent tower air cooler handles it comfortably. Check the mounting kit explicitly lists LGA 1151, and check the height against your case before ordering.
- LGA 1151 mounting kit included
- Tower air cooler or 240 mm liquid
- Height specified for case clearance
- Thermal paste usually supplied
- K chips ship without any cooler at all
- These chips run warmer than their power figures suggest
- Good air coolers are cheap and silent
- Check height clearance against the case
- Some coolers need a separate LGA 1151 bracket
Modern Power Supply (80 Plus Rated)
Often the weakest part of a machine of this age, and the component whose failure can take others with it. Capacitors degrade over years and an eight-year-old supply is well into that. A modern 80 Plus rated unit from a known brand, with the connectors your graphics card actually needs, is both more reliable and more efficient. Size it for the parts rather than the inflated numbers marketing suggests — a single-GPU Kaby Lake build needs far less than most calculators claim.
- 80 Plus efficiency certification
- Modern connector set including PCIe
- Modular or semi-modular cabling
- Five to ten year warranties on good units
- Old supplies degrade and can damage other parts
- Efficiency certification means the rating is real
- Good units outlast several builds
- Bundled case-and-PSU deals are almost always poor
- Wattage claims on no-name units are fiction
Thermal Paste
Small, cheap and necessary for any cooler installation or reinstallation, and particularly relevant on this generation. The paste under the heat spreader degrades, and the paste between the spreader and your cooler certainly does — a machine of this age with its original application is running warmer than it needs to. A decent non-conductive compound costs very little. A pea-sized amount in the centre, spread by the cooler’s own mounting pressure, is the technique; more is not better and makes temperatures worse.
- Non-conductive thermal compound
- Syringe applicator
- Small tubes cover many applications
- Long shelf life unopened
- Old paste is a real and cheap cause of high temperatures
- Non-conductive is safer if any escapes
- One tube does several builds
- Over-application makes temperatures worse
- Some high-performance pastes are electrically conductive
Anti-Static Strap and Build Tool Kit
The basics for a build or an upgrade. A grounded wrist strap means a static discharge goes somewhere other than through a memory module or a chipset — and static damage typically produces intermittent misbehaviour rather than clean failure, which is genuinely miserable to diagnose. A magnetic-tipped screwdriver, a parts tray and a set of spare standoffs and screws make everything else easier. Cheap, and it prevents the two most common self-inflicted problems.
- Grounded anti-static wrist strap
- Magnetic precision screwdrivers
- Parts tray and cable ties
- Spare standoffs and case screws
- Static damage causes intermittent faults, not clean ones
- Magnetic tips prevent screws lost inside a case
- Useful for every future build
- The strap must actually be grounded to do anything
- Easy to skip until something goes wrong
Buying tips
- There is no i7-7600K. Intel’s 7th-generation line had an i5-7600K and an i7-7700K, and the i7-7600K is a merge of the two that circulates in searches and listings. Check what you actually have or actually want before buying anything — the motherboard answer is the same, but what you should expect from the chip is not.
- LGA 1151 is two incompatible sockets with the same name. Intel’s 8th and 9th generation chips use a socket that is mechanically identical and electrically different, so a Kaby Lake chip will not run in a 300-series board and vice versa. Nothing on the packaging warns you. For a 7600K or 7700K you need a 100- or 200-series board.
- Only a Z chipset unlocks a K processor. B250 and H270 boards run these chips perfectly at stock speed and will not let you raise the multiplier — which is the entire reason to own a K. If you never intend to overclock, save the money; if you do, Z270 is the board to buy.
- Ask about the BIOS version on a Z170 board. Z170 supports Kaby Lake, but only with a BIOS that includes it, and a board on its original shipped firmware may not boot a 7th-gen chip at all. That is a chicken-and-egg problem without a compatible older chip or a BIOS flashback feature. Ask the seller specifically before buying.
- Check which M.2 slot is wired for NVMe. On this generation some M.2 slots are SATA-only, and populating an M.2 slot frequently disables one or more SATA ports. Both are in the manual and neither is obvious from the board. Read that section before planning your storage layout.
- Sixteen gigabytes in a matched pair is the upgrade to make. Dual channel needs two matching sticks, which a kit guarantees and mixing old and new sticks does not. DDR4 is cheap now and it is the single largest practical improvement to a machine of this age, ahead of anything you could do to the processor.
- Replace the power supply if it is original. Capacitors degrade over years, an eight-year-old supply is well into that, and a failing one can damage other components on its way out. A modern 80 Plus unit from a known brand is not expensive and it protects everything attached to it.
- These chips run warmer than their power figures suggest. The 7th generation used thermal paste rather than solder under the heat spreader, which limits how well heat gets out, and the 7700K in particular is known for it. A decent tower cooler and fresh paste are worth doing on any machine of this age, and they cost very little.
